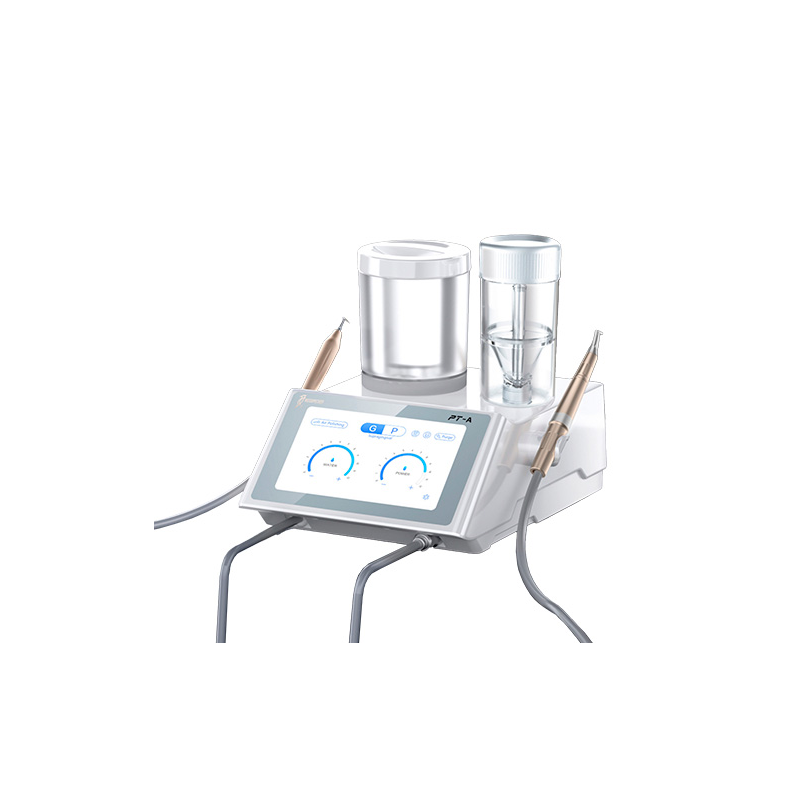

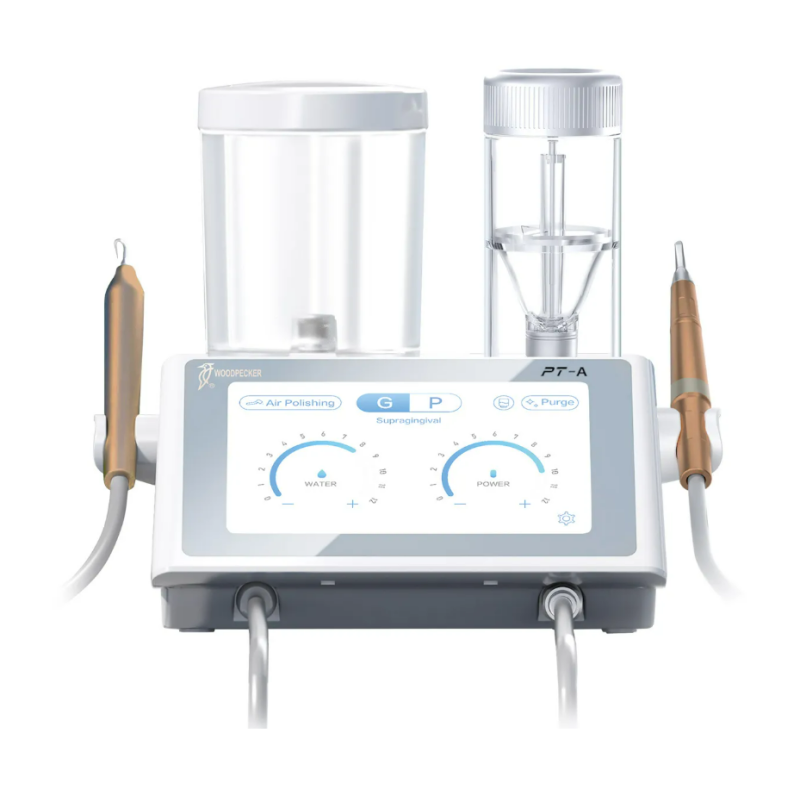

PT-A | ULTRASONIC SCALER + AIR POLISHER BY WOODPECKER

PT-A | Ultrasonic Scaler + Air Polisher by Woodpecker

ONLY FOR THE MOST DEMANDING PROFESSIONALS!

A combined and comprehensive solution for perfect prophylaxis: efficient, comfortable, and safe.

STAND OUT FROM YOUR COMPETITORS AND OFFER THE BEST TO YOUR PATIENTS

Water Heater: Eliminates pain and sensitivity caused by cold water during treatment, making the experience more comfortable for patients.

Large Touchscreen: Splash- and waterproof, responsive to gloved hands or protective film.

Automatic activation based on the handpiece lifted from the holder.

Multifunction Foot Pedal: Operate the device hands-free, including “Boost Mode” (designed to remove stubborn stains; press the Boost button to raise power by 3 levels and release to return to the preset level).

1.- AIR POLISHER

Powerful and versatile 2-IN-1 air polisher: Supragingival and Subgingival functions, designed to remove biofilm and surface stains, even in hard-to-reach areas.

New lighter and more aerodynamic design prevents pressure loss, enhances plaque and stain removal, reduces clogging, and minimizes user fatigue.

Supragingival Function: AP-1 handpiece with mini stainless-steel head delivers a precise 0.7mm powder jet surrounded by a water ring to protect soft tissue. Compatible with 40μm and 65μm Bicarbonate and Glycine powders.

Subgingival Function: AP-2 handpiece with mini head and flexible, rotatable medical polymer tip provides three powder jets and one water jet for deep subgingival cleaning. Use with 25μm Mini Glycine.

Air Polisher Features:

• Designed for use with Bicarbonate and Glycine powders.
• Air pressure input: 5.5 – 7.5 bar (requires compressed air connection).
• Water pressure input: 1 – 5 bar (network connection optional).
• Flow regulation: 12 flow levels.

• Power regulation: 12 niveles.

2.-  ULTRASONIC SCALER

With exclusive “Painless” technology for painless treatments, the integrated piezoelectric ultrasonic scaler is designed for prophylaxis, periodontics, and endodontics.

The PT-A covers supragingival and subgingival cleaning, tooth restoration, implant maintenance, and root canal therapy.

Elliptical movement disperses impact force for effective cleaning and greater patient comfort.

Allows zero-degree angles with dental surfaces and is compatible with a wide variety of tips made from titanium alloy, softer than enamel and cementum to avoid surface damage.

Powerful YZ-2L handpiece is detachable and autoclavable, fully EMS-compatible.

Autonomous solution supply allows use of clinical liquids like Hydrogen Peroxide, Hypochlorite, or Chlorhexidine, with network water supply for uninterrupted use.

Ultrasonic Features:

• Tip thread system: EMS® compatible.
• Lighting: 360° LED
• Frequency: up to 35,000 Hz.
• Working width: 90 μm.
• Modes: G - Cleaning; P - Periodontics; E - Endodontics.
• Flow regulation: 12 flow levels.
• Power regulation: 12 power levels.
• Water supply: Autonomous and network.

Included Supplies:

ULTRASONIC SCALER:

• 2 YZ-2L handpieces (detachable and autoclavable)
• 14 tips
• 2 TW-5L torque wrenches
• 2 standard wrenches
• 1 sterilization box for handpiece and accessories

AIR POLISHER:

• 2 handpieces.
  • 1 AP-1 handpiece (Supragingival).
  • 1 AP-2 handpiece (Subgingival)
• 2 transparent powder containers: one for 65µm and one for 25µm powders
• 1 Bircarbonate FAST PT-S1 bottle (300g).
• 1 Glycine GENTLE MINI PT-S3 bottle (120g).
• 10 Subgingival tips (28-AP2TIP).
• 1 wrench for subgingival tips
• 2 sterilization boxes for air polisher handpieces
• 2 cleaning needles
• 1 filter wrench

GENERAL:

• 2 water tanks: 1400ml and 600ml
• 1 multifunction foot pedal
• 1 metal transport case
• Various Spare Parts:
  • Air filter.
  • Water filter.
  • O-ring set.
  • 2 handpiece LEDs.
• Installation Accessories:
• • • 2 female connectors
    • 1 male connector
    • 1 “T” connection
    • 1 quick connection
    • 2 tubes (air and water)

Tabletop Unit: 2.75 kg / 28 x 12 x 33 cm

Warranty: 24 months (12 months on handpieces)
